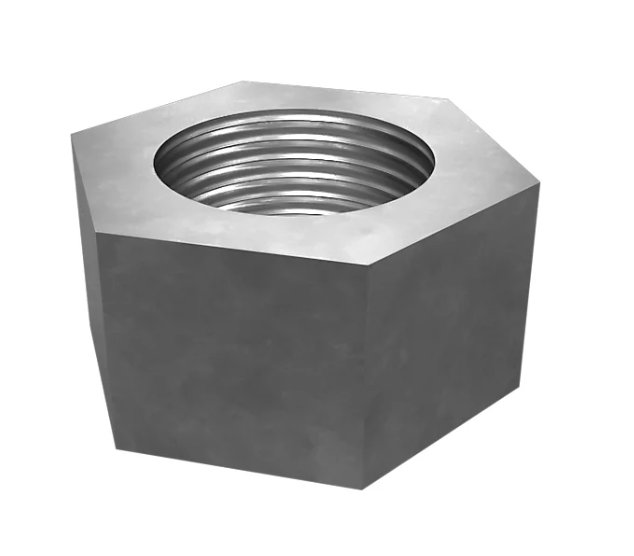

Here is the technical specification for Caterpillar part number 3E-6916:
General Specifications
- Part Number: 3E-6916 (3E6916)
- Part Description: Hex Nut (Nut-Full)
- Manufacturer: Caterpillar Inc.
Dimensions & Thread Measurements
- Thread Size: 3/8'-16
- Thread Diameter: 3/8 inch
- Threads Per Inch: 16 TPI (Coarse Thread)
- Nut Height: 0.33 inches (8.3 mm)
- Width Across Flats: 0.56 inches (14.3 mm)
Material & Performance Properties
- Material Type: A286 Austenitic Nickel-Iron Stainless Steel Superalloy
- Thread Direction: Right-Hand Thread
- Special Properties: High temperature resistance, high strength, superior corrosion prevention
