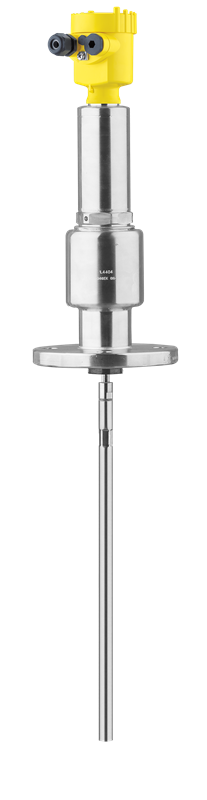

VEGAFLEX 86 Technical Specifications
- Measurement Type: Guided Wave Radar (TDR) for continuous level and interface measurement.
- Applications: High-pressure and high-temperature liquids, gases, steam boilers, distillation columns, and bulk solids.
- Accuracy: ± 2 mm.
- Process Temperature: -196 °C to +450 °C (-321 °F to +842 °F).
- Process Pressure: -1 bar to +400 bar (-100 kPa to 40 MPa / -14.5 psi to 5800 psi).
-
Measuring Range:
- Cable probe: Up to 75 m (246.1 ft)
- Rod probe: Up to 6 m (19.69 ft)
- Coaxial probe: Up to 6 m (19.69 ft)
- Signal Output: 4 … 20 mA/HART (2-wire/4-wire), Modbus, Profibus PA, Foundation Fieldbus.
- Process Materials: 316L, Hastelloy C22, Ceramic, Graphite, PTFE, PEEK.
- Process Fitting: Threaded from G1½ or 1½ NPT, Flanges from DN 50 or 2".
- Housing Protection: IP66/IP67, IP68 (1 bar).
- Safety & Approvals: ATEX, IECEx, FM, CSA, SIL2/SIL3 (IEC 61508), Ship approvals (GL, LR, ABS).
