PARKER CGLX40

Parker Autoclave Engineers CGLX40 Specification

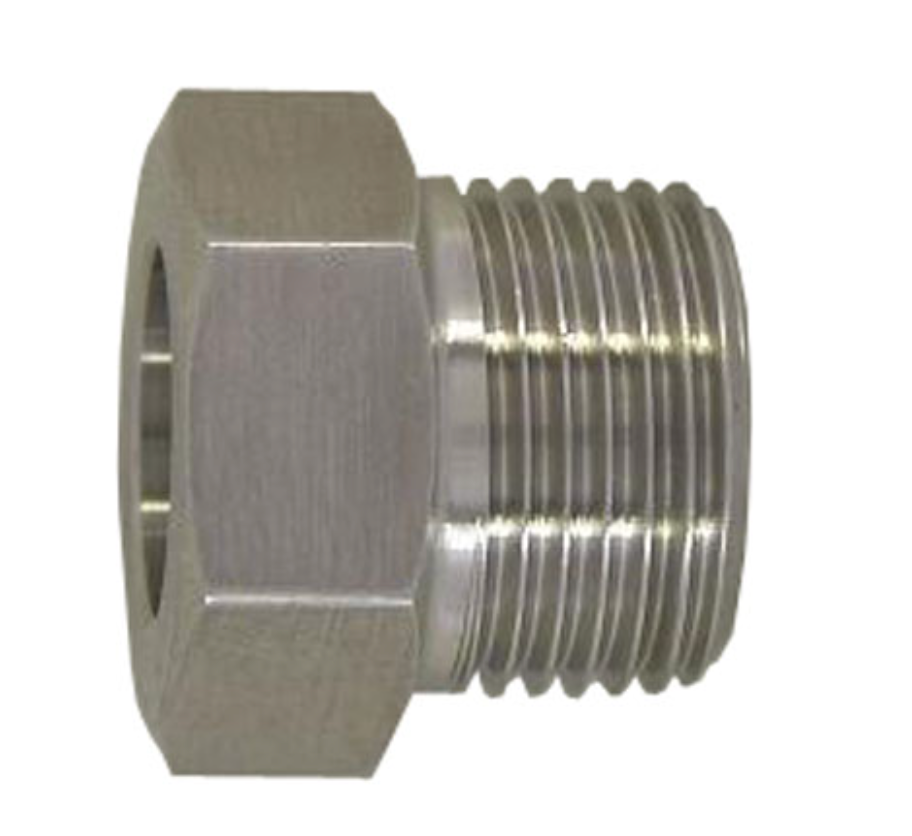

The Parker Autoclave Engineers CGLX40 is a medium-pressure, coned-and-threaded tube connection gland designed for reliable fluid handling in high-demand industrial environments.

Core Product Information

Manufacturer: Parker Autoclave Engineers
Product Series: SF Series (Medium Pressure)
Configuration Type: Tube Connection Gland
Part Number / MPN: CGLX40

Technical Specifications

Tube Connection Size: 1/4 Inch (6.35 mm)
Connection Type: SF250CX ("SlimLine" coned-and-threaded)
Maximum Pressure Rating: 20,000 PSI (1,378.93 bar) at room temperature
Operating Temperature Range: -425°F to 1,200°F (-254°C to 649°C)
Primary Material: Cold-worked 316 Stainless Steel
Measurement System: Inch

Design & Features

High Flow Profile: Engineered with custom orifice sizes to support high-flow characteristics.
Component Availability: Can be purchased as a replacement component or supplied complete with medium-pressure valves and fittings.
Special Material Configurations: Standard parts use a hexagonal shape, but custom or exotic materials may feature four flats instead of a standard hex.
Regulatory Compliance: Manufactured under ISO 9001 applicable standards.

Target Applications

High-pressure test panels
Offshore skid panels
Chemical injection systems
High-pressure gas systems
Commercial operations across chemical, petrochemical, research, and oil & gas industries
