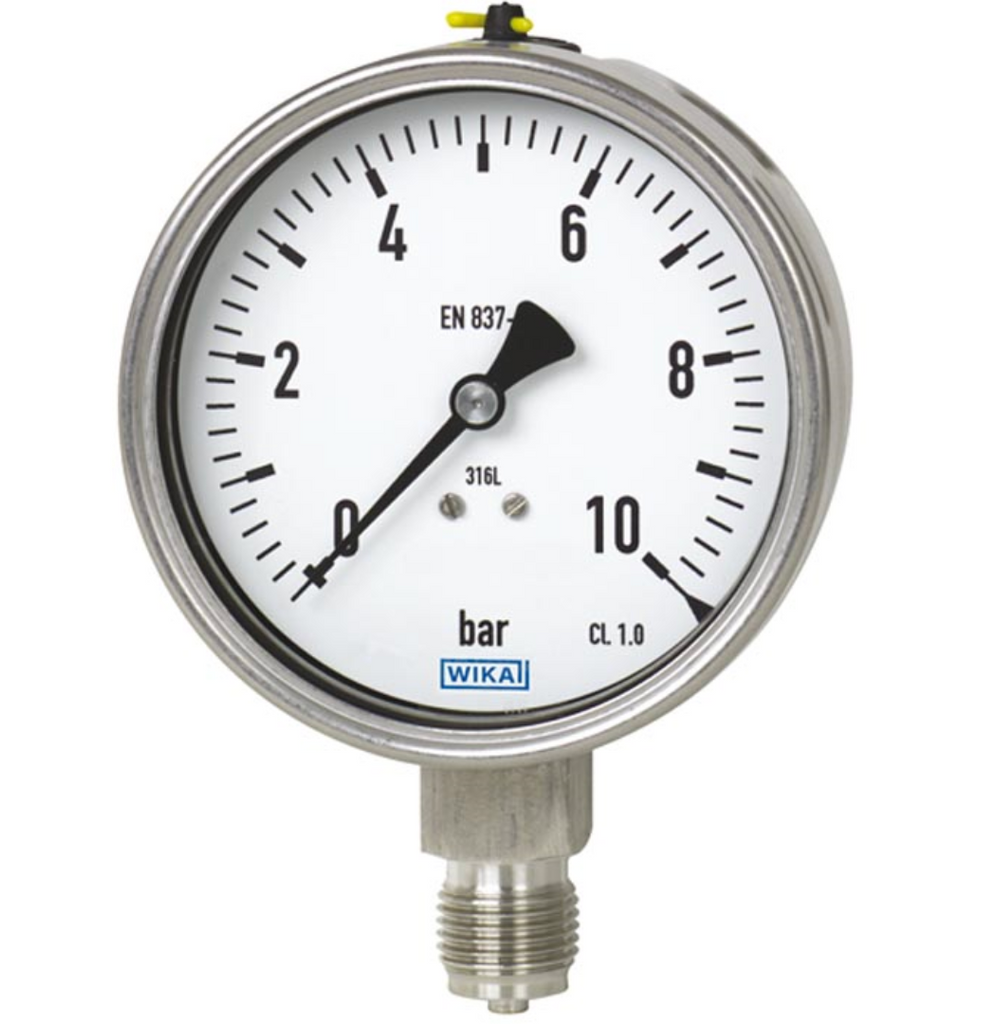

WIKA 233.50-C-LG570Z-NB-BFEZCZZ-AHAZZZZ

Technical Specifications

Manufacturer: WIKA
Model: 233.50
Instrument Type: Bourdon tube pressure gauge
Design: Safety pattern version with solid baffle wall (S3)
Case Material: Stainless steel
Case Filling: Liquid filled (Glycerine or Silicone oil for vibration dampening)
Movement Material: Stainless steel
Pressure Element: Stainless steel 316L (Bourdon tube)
Connection Location: Lower mount (bottom inlet)
Window: Laminated safety glass
Permissible Medium Temperature: -20 °C to +100 °C (-4 °F to +212 °F) with glycerine filling
Permissible Ambient Temperature: -20 °C to +60 °C (-4 °F to +140 °F)
Ingress Protection: IP65 / IP66 per IEC/EN 60529
Application: Chemical, petrochemical, oil and gas, power engineering, water and wastewater industries
