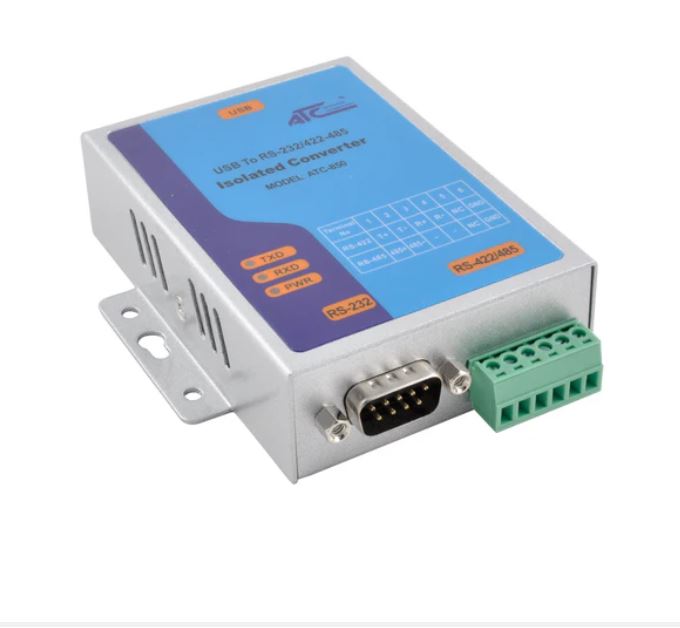

ATC-850: USB to RS-232/422/485 Adapter
The ATC-850 USB to RS-232/422/485 converter, distributed by BKAII, features automatic COM port detection and compatibility, 600W isolation support, and 384 bytes of receive and 128 bytes of transmit buffer. Just plug and play, no configuration needed. Perfect for preserving data in your system.
Features:
-
Use chip FTDI industry in pieces
-
Compatible with USB1.1, 2.0, the maximum rate can be up to 12 MBPS
-
Virtual port application and driver installation pieces support system
-
Mixer serial transmission speed can reach 921.6 KBPS
-
Mixer three signal lamp TXD, RXD, PWRS
-
Mixer supports Windows 98 / ME / 2000 / XP / / 7 / 8 / CE/Vista, MAC and Linux 2.4.20
- Static mixer interface protection, signal lightning surge protection
USB
| Interface standards | Compatible USB1.0/1.1, 2.0, plug and play |
| The interface type | USB type A mouth card |
| Speed | Full speed USB 12 MBPS |
A serial port
| The interface type | 5,6,7,8,DB9 male head, six terminals |
| Data bits | 5,6,7,8 |
| Stop bit | 1,1.5,2 |
| Parity Bit | None, Even, Odd, Space, Mark |
| Flow control | RTS/CTS, XON/XOFF |
| I/O address | The BIOS specified |
| IRQ | The BIOS specified |
| FIFO | 64 bytes |
| The interface protection | All interface 15 kv esd protection |
| The isolation voltage | 3500 VRMS 500 VDC isolation voltage continuously |
The other parameters
| Using the environment | - 20 °C to 70 °C. Relative humidity of 10% to 90% |
| Product appearance | Support the standard DIN rail, and installation fixed easily, Metal shell, anti-static, anti-interference. 100mmx86mmx26mm |
