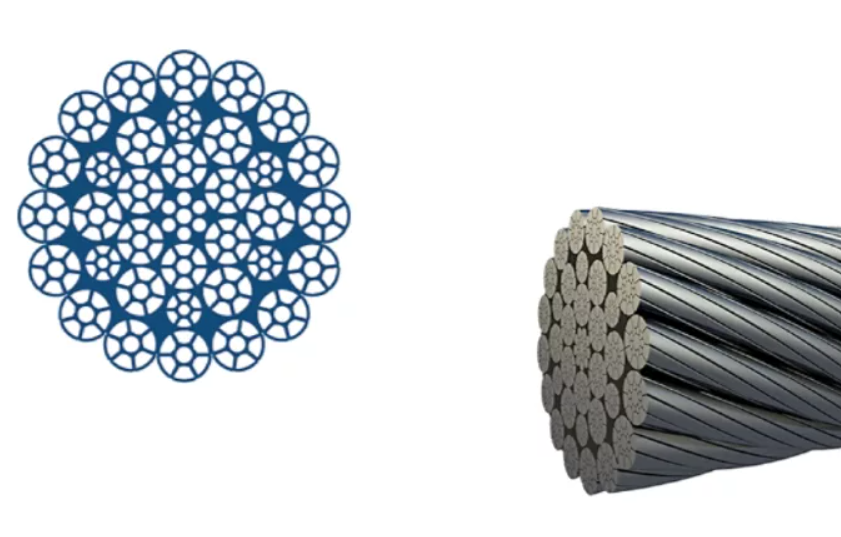

Bridon® Dyform 34LR

Bridon Dyform® 34LR is a high-performance compacted crane rope designed for excellent rotation resistance in heavy lifting. Available with an optional plastic injection core, it offers enhanced bend and fatigue resistance along with improved core stability. Choose from bright or galvanized finishes with various tolerances and lubrication options to suit your needs.

Applications

Main Hoist Ropes
Auxiliary Hoist Ropes
Life Boat Ropes
Winch lines

Advantages

Improved Breaking Load
Improved Diameter Stability
Improved Bend Fatigue (higher for PI)

Features

Compaction: Dyform
CoreI: WRC, PI
Steel Grades: 1470, 1570, 1670, 1770, 1960, 2060, 2160 or 2260
Lay Type: Langs lay or Regular lay
Lay Direction: RH, LH
Finish: Bright or Galvanised

Diameter		Nominal length mass		Minimum Breaking Force EIP/1960			Minimum Breaking Force EEIP/2160
mm	inch	kg/m	lb/ft	kN	Tons (short)	Tonnes (metric)	kN	Tons (short)	Tonnes (metric)
	3/8	0.454	0.305	82	9.2	8.36	86	9.7	8.77
10.0		0.500	0.336	90.8	10.2	9.25	95.3	10.7	9.71
11.0		0.610	0.410	109	12.3	11.1	115	12.9	11.7
	7/16	0.610	0.410	111	12.5	11.3	117	13.2	11.9
12.0		0.720	0.484	130	14.6	13.2	137	15.4	13.9
	1/2	0.808	0.543	146	16.4	14.8	153	17.2	15.6
13.0		0.850	0.571	153	17.2	15.6	161	18.1	16.4
14.0		0.980	0.659	179	20.1	18.2	191	21.5	19.5
	9/16	1.02	0.687	185	20.8	18.8	201	22.6	20.5
15.0		1.13	0.759	204	22.9	20.8	214	24.1	21.8
	5/8	1.28	0.860	232	26.1	23.6	251	28.2	25.6
16.0		1.28	0.860	232	26.1	23.6	251	28.2	25.6
17.0		1.45	0.974	262	29.4	26.7	275	30.9	28
18.0		1.62	1.09	298	33.5	30.4	319	35.9	32.5
19.0		1.81	1.22	331	37.2	33.7	356	40.0	36.3
	3/4	1.81	1.22	331	37.2	33.7	356	40.0	36.3
20.0		2.00	1.34	370	41.6	37.7	397	44.6	40.5
21.0		2.21	1.49	400	45.0	40.7	420	47.2	42.8
22.0		2.42	1.63	442	49.7	45.1	482	54.2	49.1
	7/8	2.42	1.63	448	50.4	45.7	487	54.7	49.6
23.0		2.65	1.78	480	54.0	48.9	504	56.7	51.3
24.0		2.88	1.94	528	59.3	53.8	569	64.0	58.0
25.0		3.13	2.10	568	63.8	57.9	595	66.9	60.6
	1	3.23	2.17	586	65.9	59.7	623	70.0	63.5
26.0		3.38	2.27	618	69.5	63.0	660	74.2	67.3
27.0		3.65	2.45	662	74.4	67.5	694	78.0	70.7
28.0		3.92	2.63	712	80.0	72.6	758	85.2	77.3
	1 1/8	4.09	2.75	743	83.5	75.7	779	87.6	79.4
29.0		4.21	2.83	764	85.9	77.9	801	90.0	81.6
30.0		4.50	3.02	823	92.5	83.9	857	96.3	87.3
	1 1/4	5.12	3.44	919	103.3	93.7	1008	113.3	102.8
32.0		5.12	3.44	919	103.3	93.7	1008	113.3	102.8
34.0		5.87	3.94	1050	118.0	107	1151	129.4	117.3
	1 3/8	6.18	4.15	1100	123.6	112	1214	136.5	123.8
35.0		6.22	4.18	1110	124.8	113	1214	136.5	123.8
36.0		6.58	4.42	1170	131.5	119	1287	144.7	131.2
38.0		7.33	4.93	1310	147.2	133	1444	162.3	147.2
	1 1/2	7.36	4.95	1310	147.2	133	1444	162.3	147.2
40.0		8.12	5.46	1450	163.0	147	1590	178.7	162.1
	1 5/8	8.66	5.82	1550	174.2	158	1695	190.5	172.8
42.0		8.95	6.01	1600	179.8	163	1758	197.6	179.2
44.0		9.83	6.61	1750	196.7	178	1925	216.4	196.2
46.0		10.7	7.19	1920	215.8	195
	1 7/8	11.5	7.73	2050	230.4	209
48.0		11.7	7.86	2090	234.9	213
50.0		12.7	8.53	2270	255.2	231
50.8	2	13.1	8.80	2340	263.0	238
