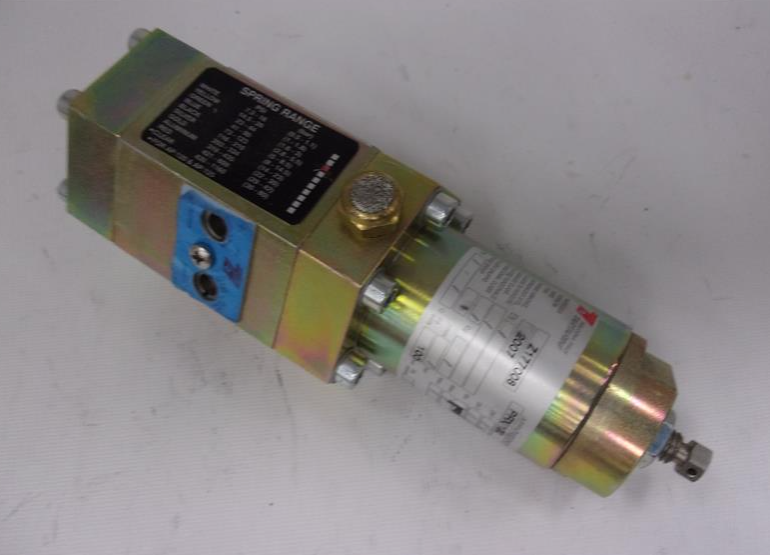

The FISHER M0255230X12 is a pressure reducing regulator designed to maintain consistent downstream pressure in pneumatic systems. Built by Fisher (Emerson), it ensures stable operation by automatically adjusting output pressure despite fluctuations in supply pressure.
This unit is typically used in industrial air systems, control panels, and pneumatic instrumentation, where precise pressure control is critical for performance and safety.
Key Features
-
Pressure reducing function – maintains stable downstream pressure
-
Set pressure range: 23–44 PSI – suitable for controlled pneumatic systems
-
Industrial-grade construction – designed for continuous operation
-
Compact regulator design – easy integration into existing systems
-
Reliable performance – minimizes pressure fluctuation effects
-
Replacement part for legacy systems – ideal for maintenance and repair
Pressure & Performance
-
Outlet Pressure Range: 23–44 PSI (≈ 1.6–3.0 bar)
-
Function: Reduces and stabilizes downstream pressure
-
Application Medium: Compressed air / pneumatic systems
Mechanical
-
Weight: ~0.91 kg
-
Construction: Industrial regulator assembly
-
Mounting: Inline / panel-mounted (typical regulator installation)
Materials (Based on configuration data)
-
Spring Material: Music wire
-
Spring Specs:
- OD: 20.4 mm
- Wire: 3.2 mm
- Free length: 55 mm
