The KEOFITT 850001 W9 Type T is a high-quality sampling valve body designed for aseptic and hygienic liquid sampling in industrial processes. Part of the renowned KEOFITT CLASSIC W9 series, it is widely used in industries such as food & beverage, pharmaceuticals, and biotechnology.
Item Attributes
| Steel Parts |
AISL 316L |
| Rubber cap |
EPDM (Black) |
Mechanical
-

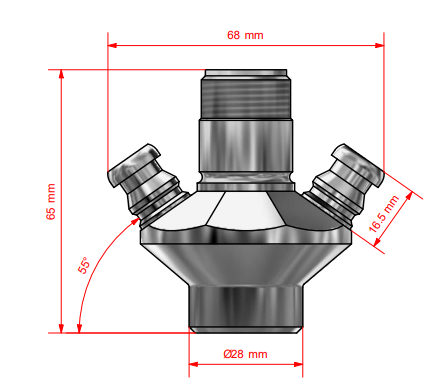

Installation: Tank welding (Ø28 mm connection)
-
Inlet/Outlet: Hose connection
-
Net Weight: ~0.316 kg
Materials
-
Process Contact Parts: AISI 316L stainless steel (1.4404)
-
Non-contact Parts:
- Stainless steel
- EPDM rubber cap
Surface Finish
-
External Surface: Electropolished Ra ≤ 1.2 µm
-
Internal (wetted): Electropolished Ra ≤ 0.5 µm
Performance
-
Fluid Compatibility: Liquids up to ~1000 cP viscosity
-
Particle Size Limit: < 3 mm
-
Cleaning Methods:
- CIP (Cleaning-in-Place)
- SIP (Steam or chemical sterilization)
Certifications
- EU 1935/2004 (food contact)
- 3-A sanitary certification
- ATEX 2014/34/EU
- PED 2014/68/EU
- Material certificate (3.1)
