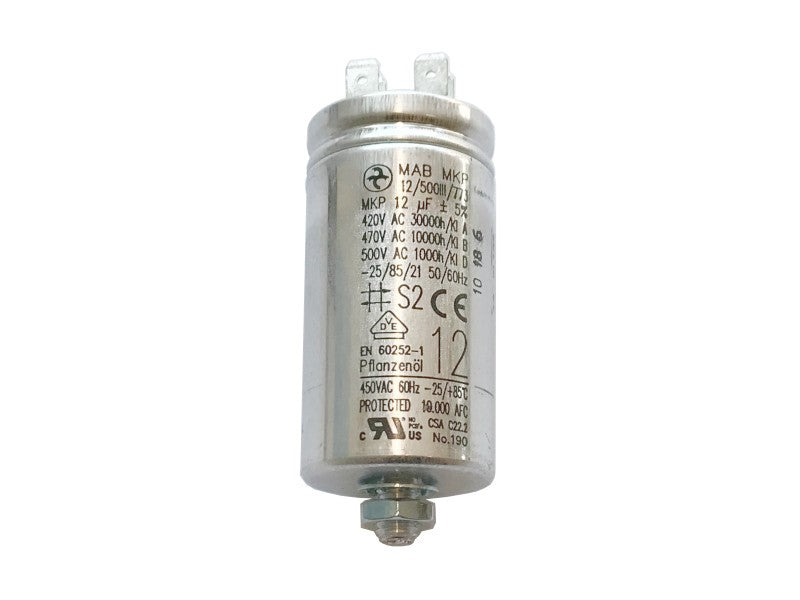

MAB MKP 12/500
Description
- Metalized polypropylene capacitor Ø35x68 mm
- CN = 12µF ±5%, VN = 500 VAC
- Storage temperature: -25ºC ...+85ºC (UL: -25 ° C)
- Metallized polypropylene
- Aluminium can with metal stud
- Environmentally friendly filling (vegetable oil)
- Safety by overpressure disconnector
- Low dissipation factor
Specifications
| Product attribute | Attribute value |
|---|---|
| Capacitive value [µF] | 12 |
| Status | ACTIVE |
| Can size | Ø35x68mm |
| Climatic class | 25/85/21 IEC 60068 |
| Connection type | Double Faston A 6,3x0,8 DIN 46244 |
| Filling | Vegetable oil |
| Frequency | 50/60Hz |
| Life time class | A- 30.000h (420V); B- 10.000h (470V); D- 1.000H (500V) |
| Manufacturer technology | Metallized polypropylene |
| metric stud in fixing bolt | M8 |
| Protection | IP65 |
| Safety | S2 |
| Temperature range | -25ºC ...+85ºC |
| Tolerance ± [%] | 5 |
| Type | MAB MKP |
| Voltage VAC [V] | 500 |
