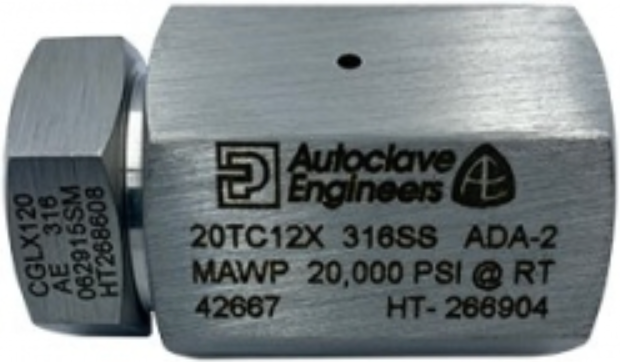

Technical Specification: Parker Autoclave Engineers 20TC12X
The 20TC12X is a high-pressure female tube cap designed for medium pressure applications, manufactured by Parker Autoclave Engineers.
Core Dimensions & Sizes
- Connection Type: SF750CX Medium Pressure Female
- Tube Outside Diameter (O.D.): 3/4 inch
- Hex Size: 1.38 inch (34.9 mm)
- Overall Length: 1.75 inch (44.5 mm)
Performance Ratings
- Maximum Working Pressure: 20,000 psi (1,379 bar)
- Temperature Range: -423°F to 1200°F (-252°C to 649°C) based on material limits
Material Configuration
- Standard Material: 316 Stainless Steel (316SS)
- Optional Materials: Inconel, Monel, Hastelloy, or Titanium upon request
System Compatibility
- Fittings Series: 20_X Series Medium Pressure
- Associated Components: Requires standard 3/4" medium pressure gland and collar for complete assembly
