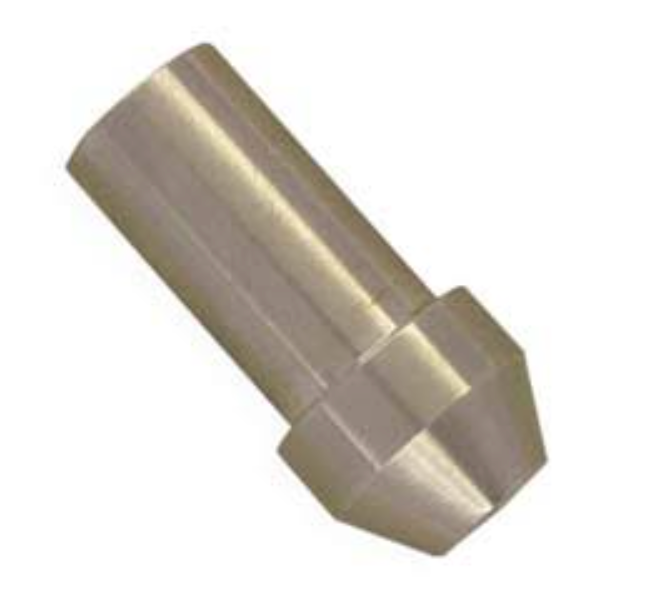

1. Product Overview
- Part Number: CPX60
- Manufacturer: Parker Autoclave Engineers
- Product Type: Medium Pressure Connection Plug
- Connection Style: SF375CX (SF Series / Slimline)
- Design Method: Cone and Threaded
2. Performance & Ratings
- Maximum Working Pressure: 20,000 PSI (1,379 bar)
- Nominal Tube Size (O.D.): 3/8" (9.53 mm)
- Orifice Diameter: Solid design (no orifice, used for isolation and capping)
- Minimum Temperature Rating: -423°F (-253°C)
- Maximum Temperature Rating: 1,200°F (649°C)
3. Materials of Construction
- Standard Material: 316 Stainless Steel (Cold-worked)
- Optional Materials: Inconel 625, Hastelloy C-276, Titanium, Monel 400
- Traceability: Heat-code stamped on the component body
4. Application Details
- Port Type Compatibility: Standard 20,000 PSI female coned and threaded medium pressure ports
- Hardware Integration: Installs directly with a standard gland nut (Part Number: CGLX60)
- Collar Requirement: Eliminates the need for a separate compression collar piece
- Safety Feature: Includes safety weep holes inside the matching female port assembly to detect gas or liquid bypass
