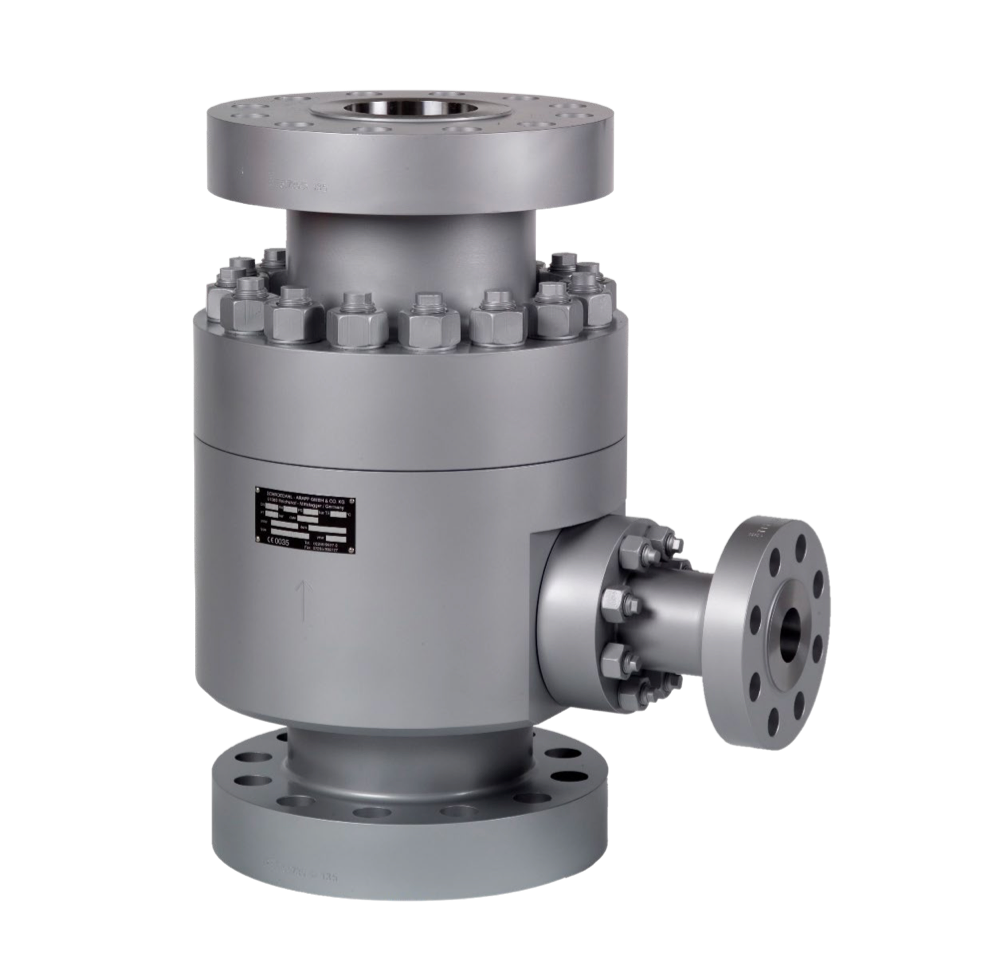

Recirculation Relief Valve – TDM086UVW-CS (Schroedahl)
Recirculation relief valve; 2 in; 600 lbs; flanged; commercial reference: Schroedahl TDM 086 UHW-CS – MAT.1.0460 – order=K01.0190.1-10101
Specifications
-
Product Name: Recirculation Relief Valve (Automatic Recirculation Valve)
-
Part Number: TDM086UVW-CS
-
Brand: Schroedahl (CIRCOR Group)
-
Valve Type: TDM Series – Automatic Recirculation Valve
-
Function: Pump protection via automatic minimum flow recirculation
-
Nominal Size: ~2 inch
-
Pressure Rating: ~600 lbs class
-
Connection Type: Flanged
-
Material (Typical): Carbon steel body (e.g., MAT 1.0460)
Operation Principle
- Flow decreases → check valve moves downward
- Bypass opens → fluid recirculates to maintain minimum flow
- Flow increases → bypass closes → full flow to system
Applications
- Centrifugal pump protection systems
- Power plants & boiler feedwater systems
- Oil & gas processing
- Chemical and industrial fluid handling
