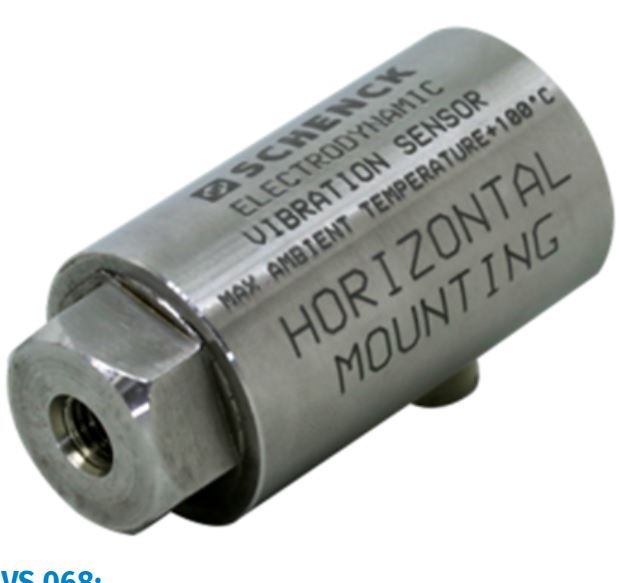

Horizontal Vibration Sensor VS 068
Description
- Horizontal direction electro-dynamic vibration transducer for measuring horizontal vibration.
- Additional supply not required.
- Large vibration measuring range.
Specifications
|
Measured Value |
RMS Value Velocity or Peak Value Displacement |
|
Direction |
Horizontal |
|
Measuring Principle |
Electro-dynamic |
|
Sensitivity |
100mV /mm / sec. + 100% |
|
Freq. Range |
1-2000 Hz |
|
Natural Frequency |
8 Hz + 10% |
|
Max Displacement |
+0.45 mm |
Electrical
|
Internal Impedance |
4KΩ+ 10% |
| Max Signal Length |
200 Meter |
Environment
|
Operating Temperature |
- 40º …. + 100º C |
|
Storage Temperature |
- 40º …. + 100º C |
|
Sealing |
IP66 |
