3/2 Normally Closed Stainless Steel Solenoid Valve FP01/S1/M/32/NC/S/77A-24D/30/[M221] Specifications Body Material Stainless Steel 316L Operating Temperature -30°C to +130°C Function Automatic Operating Pressure 0-345 Bar Operation 3/2 Normally Closed Protection Class Ex d Solenoid, ATEX/IECEx...

Bifold BXS-04-04-M13-32-NU-00-V Pneumatic Actuator The Bifold BXS-04-04-M13-32-NU-00-V is a high-quality pneumatic actuator engineered for dependable valve automation in demanding industrial environments. Designed with precision and durability in mind, this actuator delivers smooth, consistent performance to...

Bifold BXS-04-04-M5-32-NU-00-V Mechanical / Pilot Control Valve – Stainless Steel The Bifold BXS-04-04-M5-32-NU-00-V is a high-reliability mechanical control valve engineered for precise pneumatic logic and control applications. Designed and manufactured by Bifold (Rotork Group), this...

Bifold BXS-04-04-P1-32-NU-P1-V Pneumatic Actuator The Bifold BXS-04-04-P1-32-NU-P1-V is a high-performance pneumatic actuator designed for reliable and precise valve automation in demanding industrial applications. Engineered to meet international standards, this actuator delivers consistent operation, durability, and...

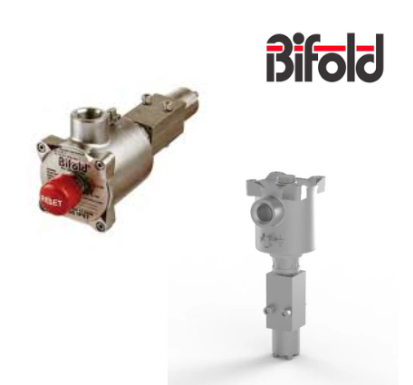

The KIT, BIFOLD, P/N FP01/S1/M/32/NC/V-RK is a specialized manifold kit designed for reliable connection, control, and isolation in industrial instrumentation systems. It is suitable for maintenance, replacement, and installation applications where dependable pressure instrument connections...

Latching Push Button Valve – 3/2 Way, Normally Closed, 5 LPM, Subbase Mount The Bifold FP05/LPB1/M/32/NO/S-LK/[M801] is a precision-engineered manual latching push-button valve designed for dependable performance in high-pressure and hazardous industrial environments. This 3/2-way...

SOLENOID VALVE, NO, COMPLETE, MODEL: FP05, VOLTAGE: 24VDC, S/N: PMD 0814-0153, DOC. REF.: BN-MLS-21-CH03-000055 REV 05 BIFOLD FP05SOAM32NOV77-24VDC

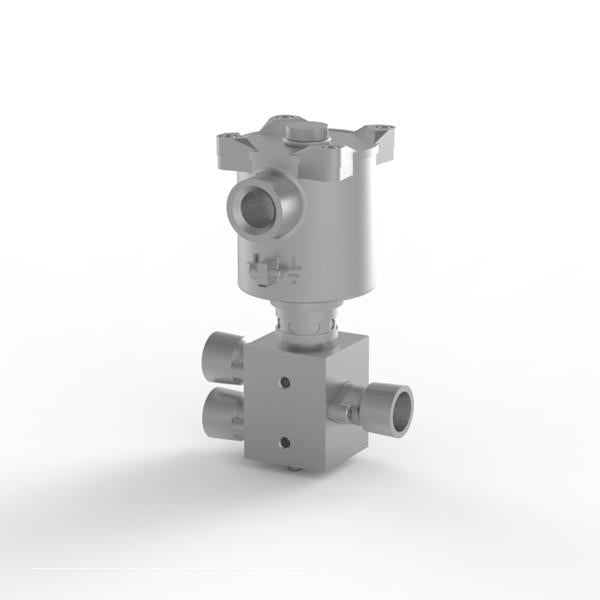

3/2 Normally Closed Stainless Steel Solenoid Valve FP05/S0A/M/32/NC/S/77A-24D/M/65 3/2, Subbase Mounting, Manual Override, NC, 5 LPM, Aluminum, subbase mount Technical Specification FP05/S0A Material: SS316L Operating temperature range: -30°C to + 130°C (40°C @T6) Flow rate:...

HSJ06-M52-00-32-NU-P1 1/4" Hydraulic service 8 bar max WP, Spring return Key operator, 3 port 2 position, universal,detented, pilot return. Used for Partial stroke systems

HIGH PRESSURE LOGIC VALVE, LPV8008/05/S

PCV-06F-06F-13-023-V Name: PCV-06F-06F-13-023-V Description: Model Code: Pneumatic service check valve, Inlet Connection: 3/8 NPT female, Outlet Connection: 3/8 NPT female, Working Pressure: 13 bar, Cracking Pressure: 0.023 bar nominal, O-ring Material: Viton -20C to +180C....

PCV-12F-12F-13-023-V Name: PCV-12F-12F-13-023-V Description: Model Code: Pneumatic service check valve, Inlet Connection: 3/4 NPT female, Outlet Connection: 3/4 NPT female, Working Pressure: 13 bar, Cracking Pressure: 0.023 bar nominal, O-ring Material: Viton -20C to +180C....

PCV-16F-16F-13-023-V Name: PCV-16F-16F-13-023-V Description: Model Code: Pneumatic service check valve, Inlet Connection: 1 NPT female, Outlet Connection: 1 NPT female, Working Pressure: 13 bar, Cracking Pressure: 0.023 bar nominal, O-ring Material: Viton -20C to +180C....

SH09-FR-SR-MD-10-X1 Quick Overview : Filter Regulator, 316 Stainless Steel, 3/8 NPT, Self Relieving, Manual Drain, 10 Bar, 5-10 Micron Filter. Name: SH09-FR-SR-MD-10-X1 Description: Model Code: Air preparation unit, 3/8 connections, -20C to +135C, Model Type:...

SH12-R1-SR-10Model Code: Air preparation unit - 1/2 inch connections: -20°C to +135°C, Model Type:Regulator, Self/Non Relieving: Self relieving, Drain option: N/A, Output Pressure Range: 0.4 -10 bar output range, Filter Element: N/A, Connections: NPT connections,...

Bifold SH19-FR-SR-AD-10-X1 – Stainless Steel Filter Regulator (Air Preparation Unit) The Bifold SH19‑FR‑SR‑AD‑10‑X1 is engineered for demanding industrial environments, offering rugged stainless steel durability with precise regulation and dependable automatic drainage. Designed for high‑flow applications,...

Bifold - SH19-FR-SR-MD-10-X4 Manufacturer Bifold Part Number SH19-FR-SR-MD-10-X4 Inner Code 4794840 Description Filters/Controls Custom Code 8481 20 90 Technical specification Material: SS316L Operating temperature range: -20°C to +135°C SH19 standard service, 3/4"NPT connection FR filter/controller...

SH25-FR-SR-MD-10-X4   Description: Model Code: Air preparation unit, 1 connections, -20°C to +135°C, Model Type: Filter regulator, Self/Non Relieving: Self relieving, Drain option: Manual drain, 20 bar maximum inlet pressure, Output Press Range: 1 -...

SJ06-E1-32-NC-00-77U-24D-30
